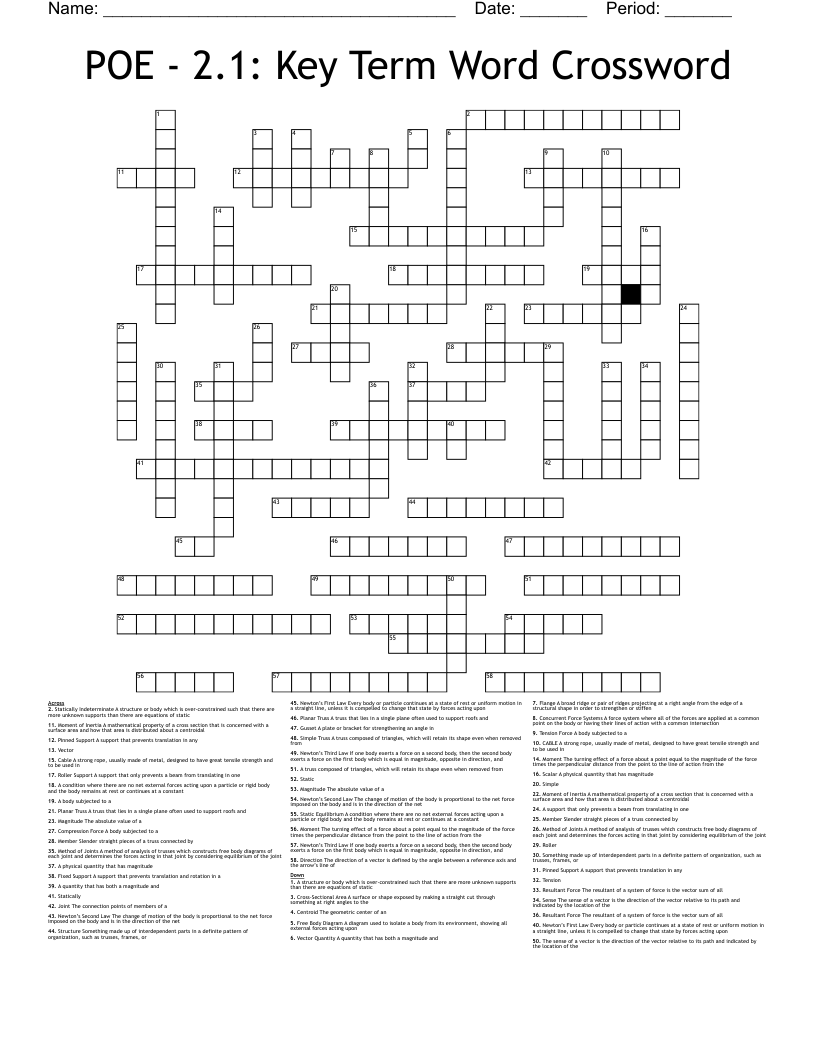

POE - 2.1: Key Term Word Crossword

Magnitude The absolute value of a
Member Slender straight pieces of a truss connected by
Method of Joints A method of analysis of trusses which constructs free body diagrams of each joint and determines the forces acting in that joint by considering equilibrium of the joint
Moment The turning effect of a force about a point equal to the magnitude of the force times the perpendicular distance from the point to the line of action from the
Moment of Inertia A mathematical property of a cross section that is concerned with a surface area and how that area is distributed about a centroidal
Newton’s First Law Every body or particle continues at a state of rest or uniform motion in a straight line, unless it is compelled to change that state by forces acting upon
Newton’s Second Law The change of motion of the body is proportional to the net force imposed on the body and is in the direction of the net
Newton’s Third Law If one body exerts a force on a second body, then the second body exerts a force on the first body which is equal in magnitude, opposite in direction, and
Pinned Support A support that prevents translation in any
Planar Truss A truss that lies in a single plane often used to support roofs and
Resultant Force The resultant of a system of force is the vector sum of all
Roller
A support that only prevents a beam from translating in one
A physical quantity that has magnitude
The sense of a vector is the direction of the vector relative to its path and indicated by the location of the
Simple
A truss composed of triangles, which will retain its shape even when removed from
Static
A condition where there are no net external forces acting upon a particle or rigid body and the body remains at rest or continues at a constant
Statically
A structure or body which is over-constrained such that there are more unknown supports than there are equations of static
Something made up of interdependent parts in a definite pattern of organization, such as trusses, frames, or
Tension
A body subjected to a
Vector
A quantity that has both a magnitude and
Cable A strong rope, usually made of metal, designed to have great tensile strength and to be used in
Centroid The geometric center of an
Compression Force A body subjected to a
Concurrent Force Systems A force system where all of the forces are applied at a common point on the body or having their lines of action with a common intersection
Cross-Sectional Area A surface or shape exposed by making a straight cut through something at right angles to the
Direction The direction of a vector is defined by the angle between a reference axis and the arrow’s line of
Fixed Support A support that prevents translation and rotation in a
Flange A broad ridge or pair of ridges projecting at a right angle from the edge of a structural shape in order to strengthen or stiffen
Free Body Diagram A diagram used to isolate a body from its environment, showing all external forces acting upon
Gusset A plate or bracket for strengthening an angle in
Joint The connection points of members of a
Magnitude The absolute value of a
Member Slender straight pieces of a truss connected by
Method of Joints A method of analysis of trusses which constructs free body diagrams of each joint and determines the forces acting in that joint by considering equilibrium of the joint
Moment The turning effect of a force about a point equal to the magnitude of the force times the perpendicular distance from the point to the line of action from the
Moment of Inertia A mathematical property of a cross section that is concerned with a surface area and how that area is distributed about a centroidal
Newton’s First Law Every body or particle continues at a state of rest or uniform motion in a straight line, unless it is compelled to change that state by forces acting upon
Newton’s Second Law The change of motion of the body is proportional to the net force imposed on the body and is in the direction of the net
Newton’s Third Law If one body exerts a force on a second body, then the second body exerts a force on the first body which is equal in magnitude, opposite in direction, and
Pinned Support A support that prevents translation in any
Planar Truss A truss that lies in a single plane often used to support roofs and
Resultant Force The resultant of a system of force is the vector sum of all
Roller Support A support that only prevents a beam from translating in one
Scalar A physical quantity that has magnitude
Sense The sense of a vector is the direction of the vector relative to its path and indicated by the location of the
Simple Truss A truss composed of triangles, which will retain its shape even when removed from
Static Equilibrium A condition where there are no net external forces acting upon a particle or rigid body and the body remains at rest or continues at a constant
Statically Indeterminate A structure or body which is over-constrained such that there are more unknown supports than there are equations of static
Structure Something made up of interdependent parts in a definite pattern of organization, such as trusses, frames, or
Tension Force A body subjected to a
Vector Quantity A quantity that has both a magnitude and
CABLE A strong rope, usually made of metal, designed to have great tensile strength and to be used in
