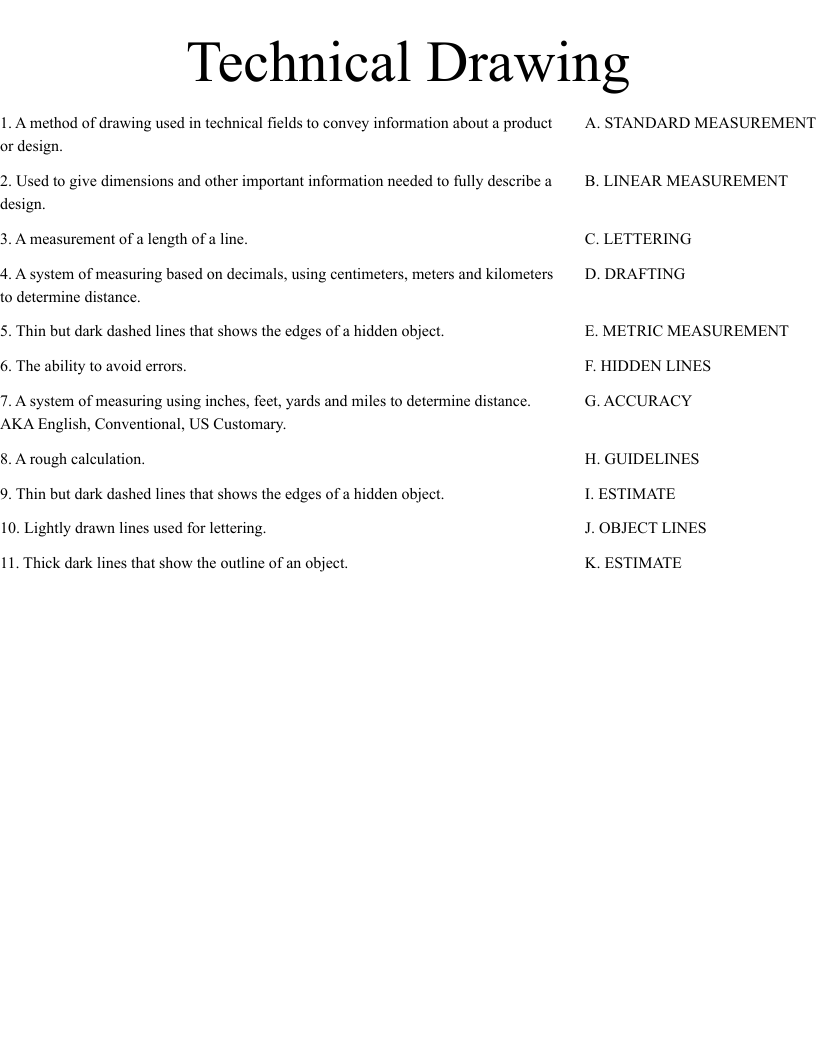

Technical Drawing Worksheet

This printable matching worksheet has 11 questions and answers to match. This matching worksheet is also available to download as a Microsoft Word document or a PDF.

A method of drawing used in technical fields to convey information about a product or design.
Used to give dimensions and other important information needed to fully describe a design.
A measurement of a length of a line.
A system of measuring based on decimals, using centimeters, meters and kilometers to determine distance.
Thin but dark dashed lines that shows the edges of a hidden object.
The ability to avoid errors.
A system of measuring using inches, feet, yards and miles to determine distance. AKA English, Conventional, US Customary.
A rough calculation.
Thin but dark dashed lines that shows the edges of a hidden object.
Lightly drawn lines used for lettering.
Thick dark lines that show the outline of an object.
