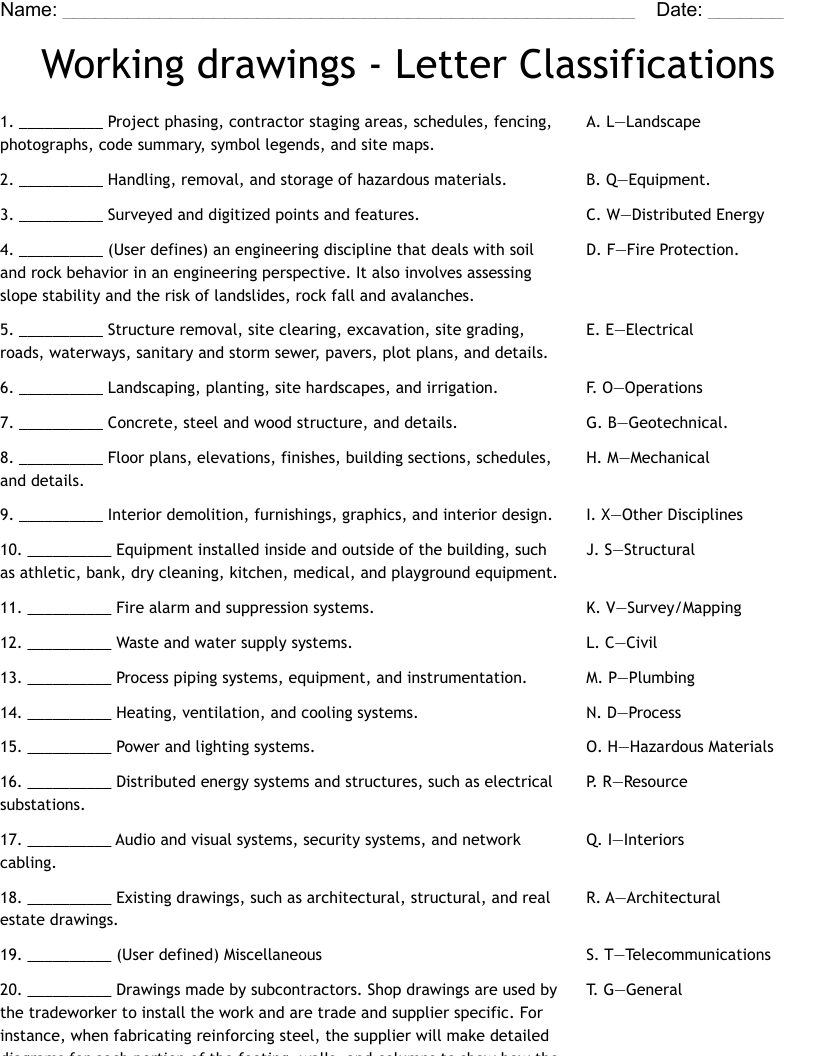

Working drawings - Letter Classifications Worksheet

__________ Project phasing, contractor staging areas, schedules, fencing, photographs, code summary, symbol legends, and site maps.
__________ Handling, removal, and storage of hazardous materials.
__________ Surveyed and digitized points and features.
__________ (User defines) an engineering discipline that deals with soil and rock behavior in an engineering perspective. It also involves assessing slope stability and the risk of landslides, rock fall and avalanches.
__________ Structure removal, site clearing, excavation, site grading, roads, waterways, sanitary and storm sewer, pavers, plot plans, and details.
__________ Landscaping, planting, site hardscapes, and irrigation.
__________ Concrete, steel and wood structure, and details.
__________ Floor plans, elevations, finishes, building sections, schedules, and details.
__________ Interior demolition, furnishings, graphics, and interior design.
__________ Equipment installed inside and outside of the building, such as athletic, bank, dry cleaning, kitchen, medical, and playground equipment.
__________ Fire alarm and suppression systems.
__________ Waste and water supply systems.
__________ Process piping systems, equipment, and instrumentation.
__________ Heating, ventilation, and cooling systems.
__________ Power and lighting systems.
__________ Distributed energy systems and structures, such as electrical substations.
__________ Audio and visual systems, security systems, and network cabling.
__________ Existing drawings, such as architectural, structural, and real estate drawings.
__________ (User defined) Miscellaneous
__________ Drawings made by subcontractors. Shop drawings are used by the tradeworker to install the work and are trade and supplier specific. For instance, when fabricating reinforcing steel, the supplier will make detailed diagrams for each portion of the footing, walls, and columns to show how the reinforcing steel is to be installed. These are different from the structural engineer’s design drawings. This additional detail will help the tradeworker install the reinforcing steel correctly.
__________ Construction operations means all operations carried out when building or demolishing a construction works (land digging, plastering, concrete work, installation work, foundations and roof erection, joinery work, exterior and interior finish, setting in motion and adjustment of equipment)
